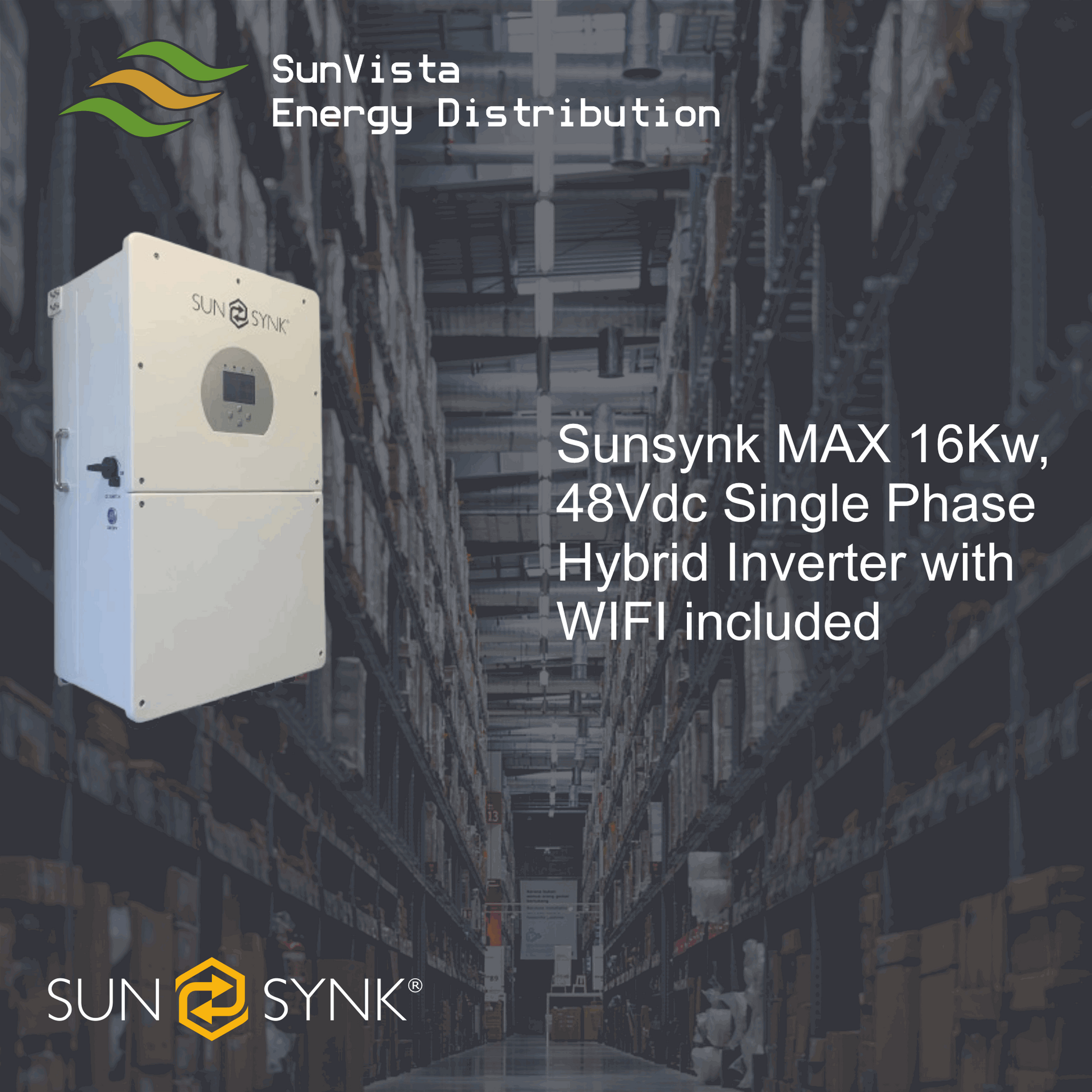

Sunsynk MAX 16kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

The Sunsynk 16kW single-phase hybrid inverter is the biggest addition to Sunsynk’s low-voltage (48V) single-phase inverter range. It’s suitable for off-grid, grid support, backup, and self-consumption PV systems and can also be used in both three-phase and single-phase parallel applications.

In terms of functionality, compatibility, and related accessories, it’s similar to the 5kW and 8kW units but particularly suited to large domestic and small commercial installations.

“It’s the biggest single-phase all-in-one inverter with everything built in, in the world," says Keith Gough, Sunsynk CEO. "A true monster!"

Additional features:

• A total of 15x inverters can be connected in a three-phase configuration (five units per phase), giving a maximum power output of 240kW.
• Three inverters can be connected in a single-phase configuration, giving a total power of 48 kW.
• Contains 3x MPPTs to allow for flexible PV array designs and improved efficiency.
• Programmable multiple operation modes: on-grid/off-grid and UPS
• IP65 protection rating
• Wi-Fi dongle as standard, enabling remote monitoring via the Sunsynk cloud
• Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV, Freedom Won, and Kodak (BL3.6).

For installations with Pylontech, REVOV, and Hubble Lithium batteries, use this BMS cable: SUN-CAN-3M

For installations with Freedom Won batteries, use this BMS cable: F-WON-CAN-SUN

It is recommended that you use the size 3 fuse holder with the appropriately rated size 3 fuses when deploying this inverter system; the battery DC currents are high, and the size 3 fuses best suit this application.

Installations with Sunsynk products need to be registered to gain full activation of the warranty. Register here>>
