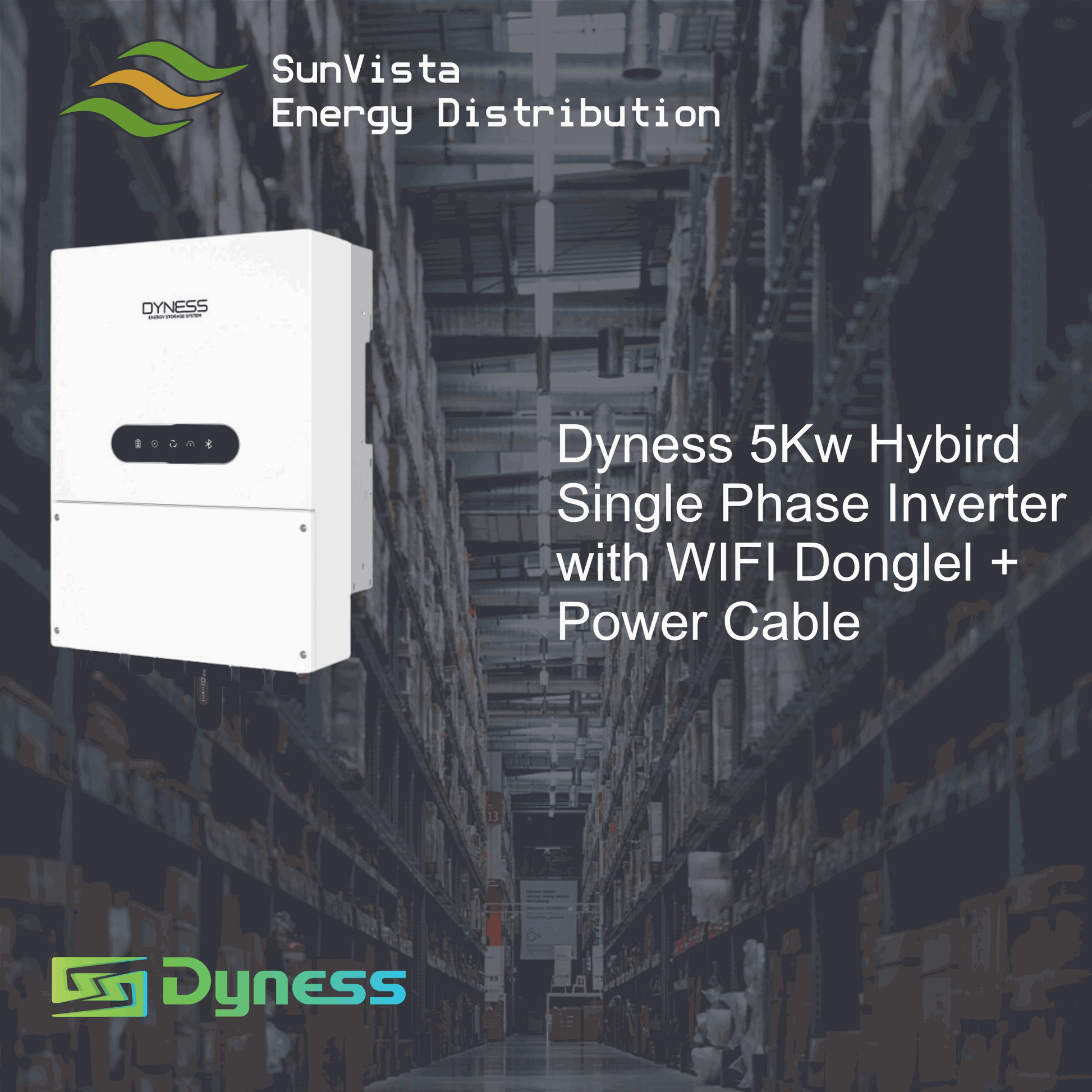

Dyness 5KW Hybird Single Phase Inverter with WIFI Donglel + Power Cable

Key Features

• Generator Connectivity: Supports multiple input methods with automatic on/off control for generators.
• Automatic UPS Switching: Ensures uninterrupted power with a switchover time of less than 4 milliseconds.
• Peak Shaving Control: Operates in both “self-use” and “generator” modes to manage peak loads efficiently.
• High Charge/Discharge Current: Allows up to 135A (5.0/6.0K models) and 190A (8.0K model) for rapid energy management.
• Customisable Settings: Offers six customisable charge/discharge time settings for tailored energy usage.
• Surge Power Capability: Provides a 10-second backup overload capability at 200% of the rated power.
• Flexible Connection: Supports single-phase and three-phase connections, with scalability up to 36kW (5.0/6.0K models) and 48kW (8.0K model) in parallel setups.

Dyness 5kw Hybrid Inverter Specifications:

Input DC (PV Side)

• Recommended Max. PV Power: 8 kW
• Max. Input Voltage: 600 V
• Rated Voltage: 300 V
• Start-up Voltage: 90–520 V
• Max. Input Current: 16 A/16 A
• Max. Short Circuit Current: 24 A/24 A

Battery

• Battery Type: Lithium-ion
• Max. Charge/Discharge Power: 5 kW
• Max. Charge/Discharge Current: 112 A

Output AC (grid side)

• Rated Output Power: 5 kW
• Max. Output Current: 25 A
• Max. Input Current: 34.1 A

General

• Dimensions (WHD): 405560205 mm
• Weight: 24 kg
• Ingress Protection: IP66

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SunVista Energy Distribution will not be held liable for any product malfunctions due to incorrectly installed systems.

Dyness 5KW Hybrid Datasheet Download
