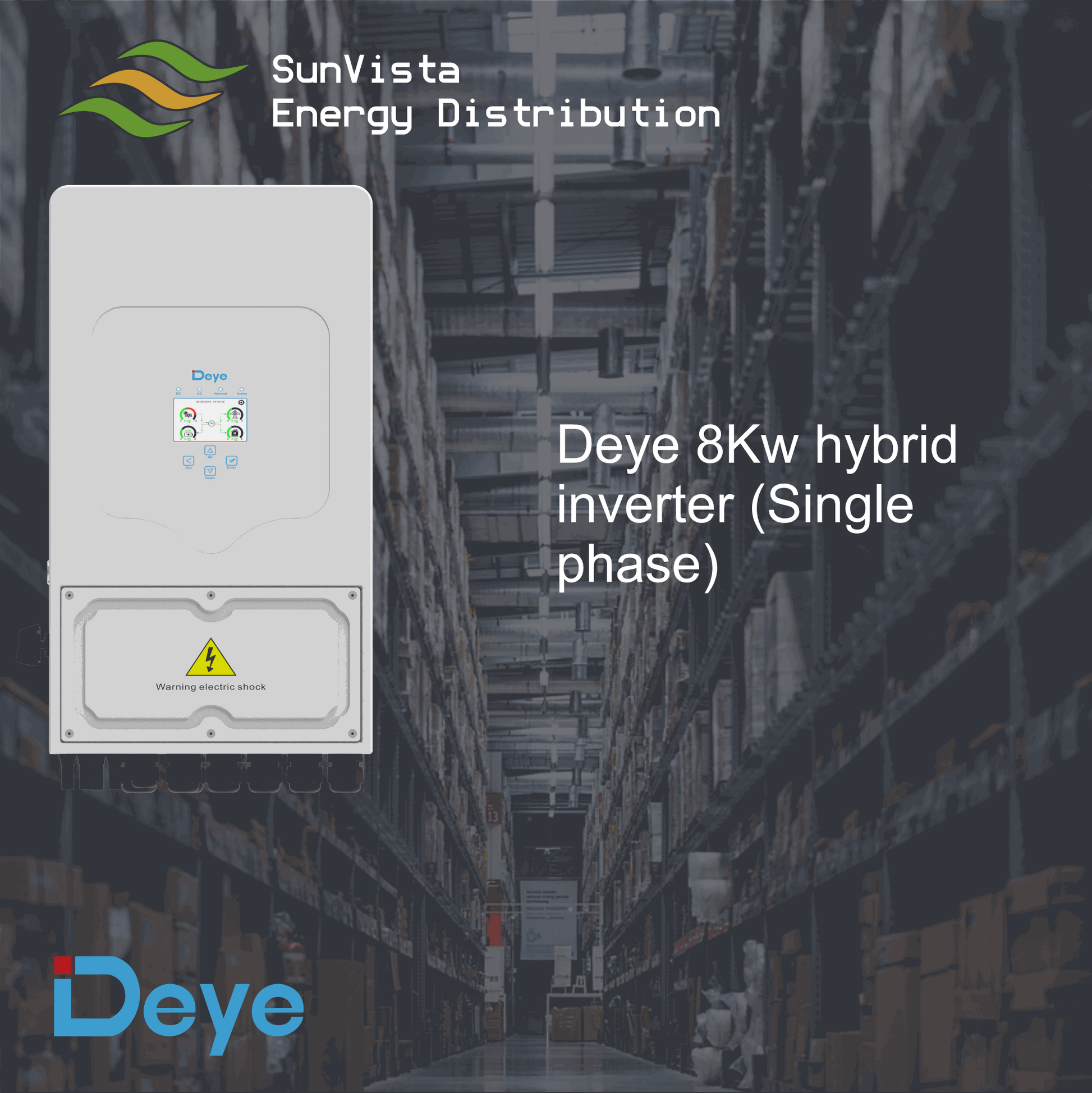

Deye 8Kw Single Phase Hybrid Inverter

Key Features

• High Charging/Discharging Capabilities: The Deye SUN-(3.6-8)K-SG05LP1-EU inverters support a maximum charging/discharging current of 190A. This high capacity ensures efficient energy storage and discharge, enhancing overall energy utilisation.
• Diesel Generator Compatibility: These inverters can store energy from diesel generators, offering an added layer of power reliability and ensuring that backup power sources are effectively utilised.
• Parallel Operation: One of the standout features of this series is its ability to support up to 16 units in parallel for both on-grid and off-grid configurations. This parallel capability provides significant scalability, accommodating increasing energy demands without compromising performance.
• Battery Versatility: The inverters are compatible with both lead-acid and lithium-ion batteries. Additionally, multiple batteries can be connected in parallel to extend energy storage capacity, catering to various storage needs.
• Retrofit Capabilities: The ability to AC coupled with existing solar systems makes these inverters ideal for retrofitting, allowing users to upgrade their energy systems without a complete overhaul.
• User-friendly Interface: A colourful touch LCD screen provides an intuitive interface for monitoring and control, ensuring that users can easily access and manage system information.
• Durable Design: Built to last, these inverters boast an IP65 protection rating, which guards against dust and water ingress, making them suitable for installation in various environmental conditions.

Technical Specifications

• Battery Input Data:

  • Battery Type: Lead-Acid or Lithium-Ion
  • Battery Voltage Range: 40-60V
  • Max. Charging/Discharging Current: 190A
  • Self-adaptation BMS Support: Ensures compatibility with different battery management systems.

• PV String Input Data:

  • Maximum PV Input Power: Up to 10,400W
  • Maximum PV Input Voltage: Up to 500V
  • MPPT Voltage Range: 150-425V

• AC Input/Output Data:

  • Rated AC Power: From 3600W to 8000W, depending on the model
  • Peak Power (off-grid): Double the rated power for 10 seconds.
  • Power Factor Adjustment: 0.8 leading to 0.8 lagging
  • Efficiency: Max. efficiency of 97.6%, Euro efficiency of 96.5%, and MPPT efficiency greater than 99%

• Protection & Compliance:

  • The inverters include an extensive range of protection features such as AC output overcurrent, overvoltage, short circuit, and thermal protection, ensuring safe and reliable operation.
  • Compliance with international standards, including IEC 61727, IEC 62116, CEI 0-21, and others, ensures global operability.

• Environmental & Physical Features:

  • Operating Temperature Range: -40°C to +60°C, with derating above 45°C
  • Humidity: 0-100%
  • Altitude: Up to 2000 m
  • Noise Level: Less than 30 dB
  • Ingress Protection: IP65, ensuring resistance to dust and water.
  • Cooling: An intelligent air cooling system ensures optimal thermal management.
  • Dimensions: 330×580×232 mm (excluding connectors and brackets).
  • Weight: 24.9 kg

• Interface & Communication:

  • Monitoring Modes: Options for GPRS, WIFI, Bluetooth, 4G, and LAN (optional)
  • Communication Interfaces: RS485, RS232, and CAN, providing versatile connectivity options.

With robust performance and advanced features, the Deye SUN-(3.6-8)K-SG05LP1-EU hybrid inverters ensure reliable and efficient energy management, making them a prime choice for modern energy systems looking for cutting-edge solutions.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SunVista Energy Distribution will not be held liable for any product malfunctions due to incorrectly installed systems.

Deye 8KW Hybrid Datasheet Download
