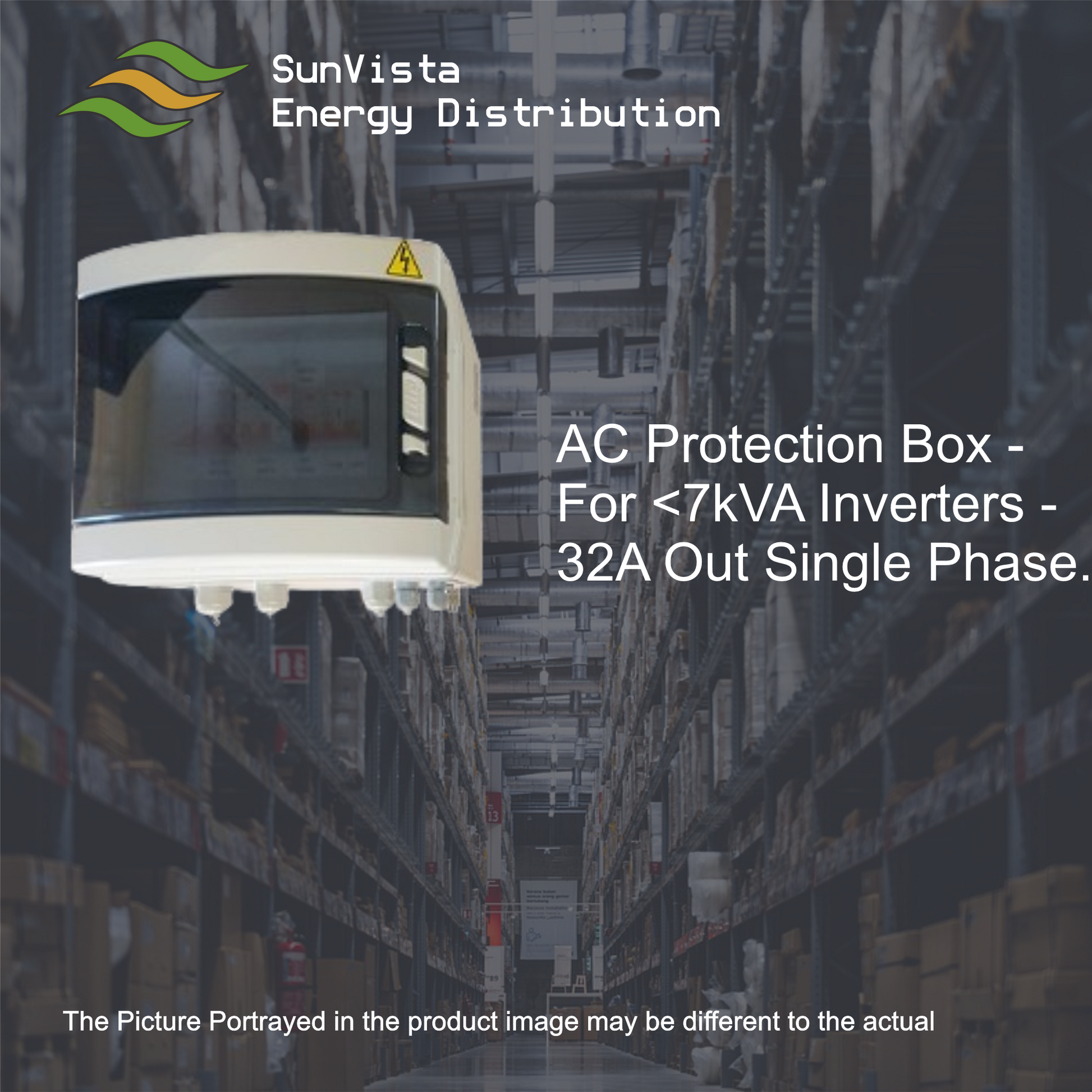

AC Protection Box - For <7kVA Inverters - 32A Out Single Phase

AC Protection Box

Protect your residential system from AC surges with one box. The AC Protection box is to be used as the protection between your 7.2kVA inverter and the utility grid.  The AC Protection box is designed to protect the input to the inverter with the built in AC surge protection device and to protect the inverter from any potential cable fault that may occur between the output of the inverter and the point of common coupling with the grid.

Product Features

• IP65 rated for external use
• Protect your inverter from overload on output
• Makes installation easy and correct to stay in current regulations
• Has AC Surge protection from Utility

Technical

• Grid SPD 230VAC Type 2 1P and N
• 60A 2 Pole Input Breaker
• 32A 2 Pole Output Breaker
• 40A 30mA 2 Pole Earth Leakage
• Plug Output Breaker 1 x 20A Single Phase
• Lights Output Breaker 1 x 10A Single Phase

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SunVista Energy Distribution will not be held liable for any product malfunctions due to incorrectly installed systems.
