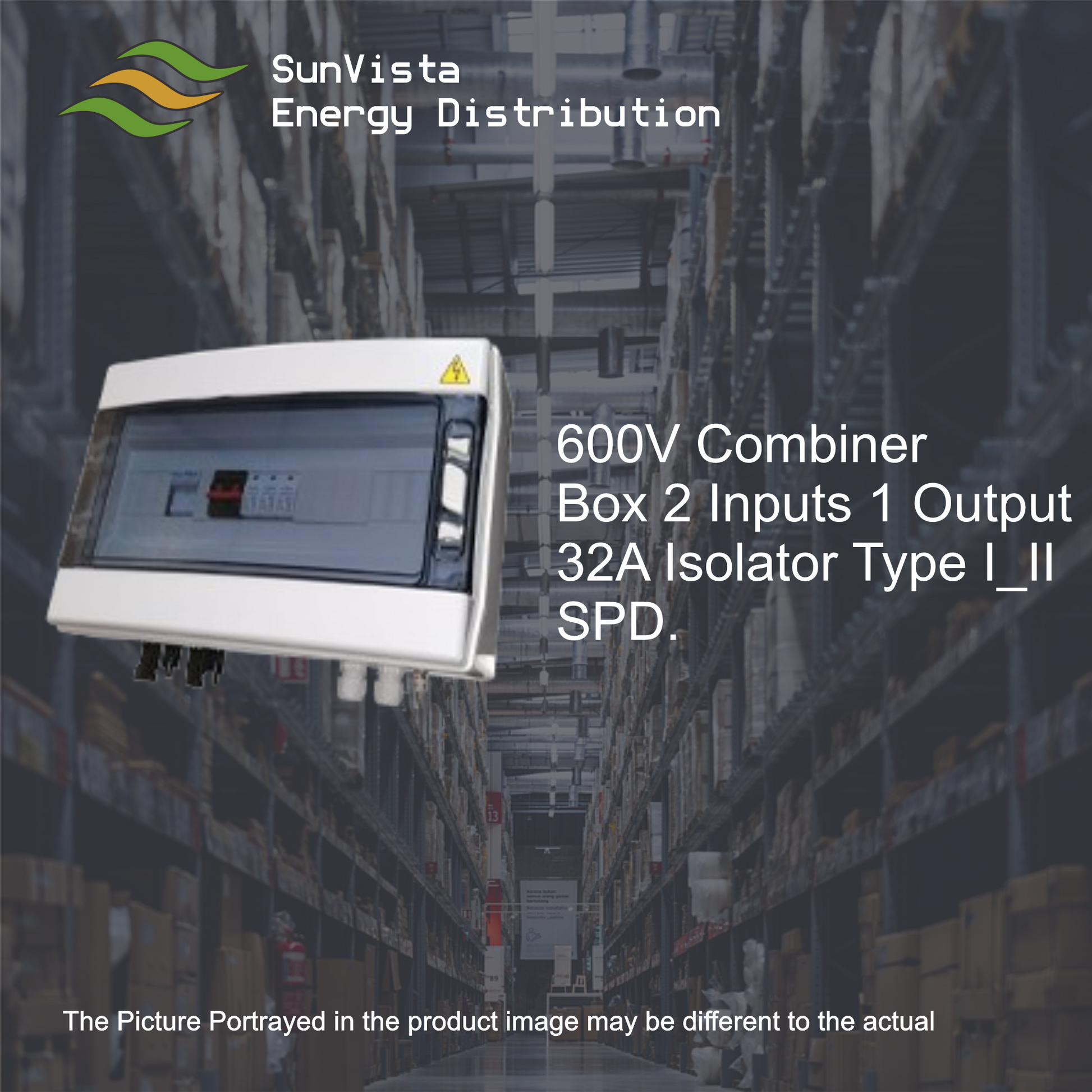

600V Combiner Box 2 Inputs 1 Output 32A Isolator Type I_II SPD

Outdoor-rated DC combiner box for connecting parallel PV strings into your MPPT. The box includes several features that reduces the amount of separate components you need to install.

Inputs and Outputs

This unit combines 2 PV input pairs into one DC output. The inputs have MC4 connectors pre-fitted and the main output is a gland. There is also a gland output for earthing.

DC isolation: rated at 32A and 600V

DC surge protection

This unit has Citel Type 1 & 2 DC surge arrestors included and is suitable for installation sites that experience frequent lightning strikes.

Note this DC Protection box does not include Fuses. Ensure that you include fuses from our two options FUSE-20A-10x38 or FUSE-25A-10x38

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SunVista Energy Distribution will not be held liable for any product malfunctions due to incorrectly installed systems.
