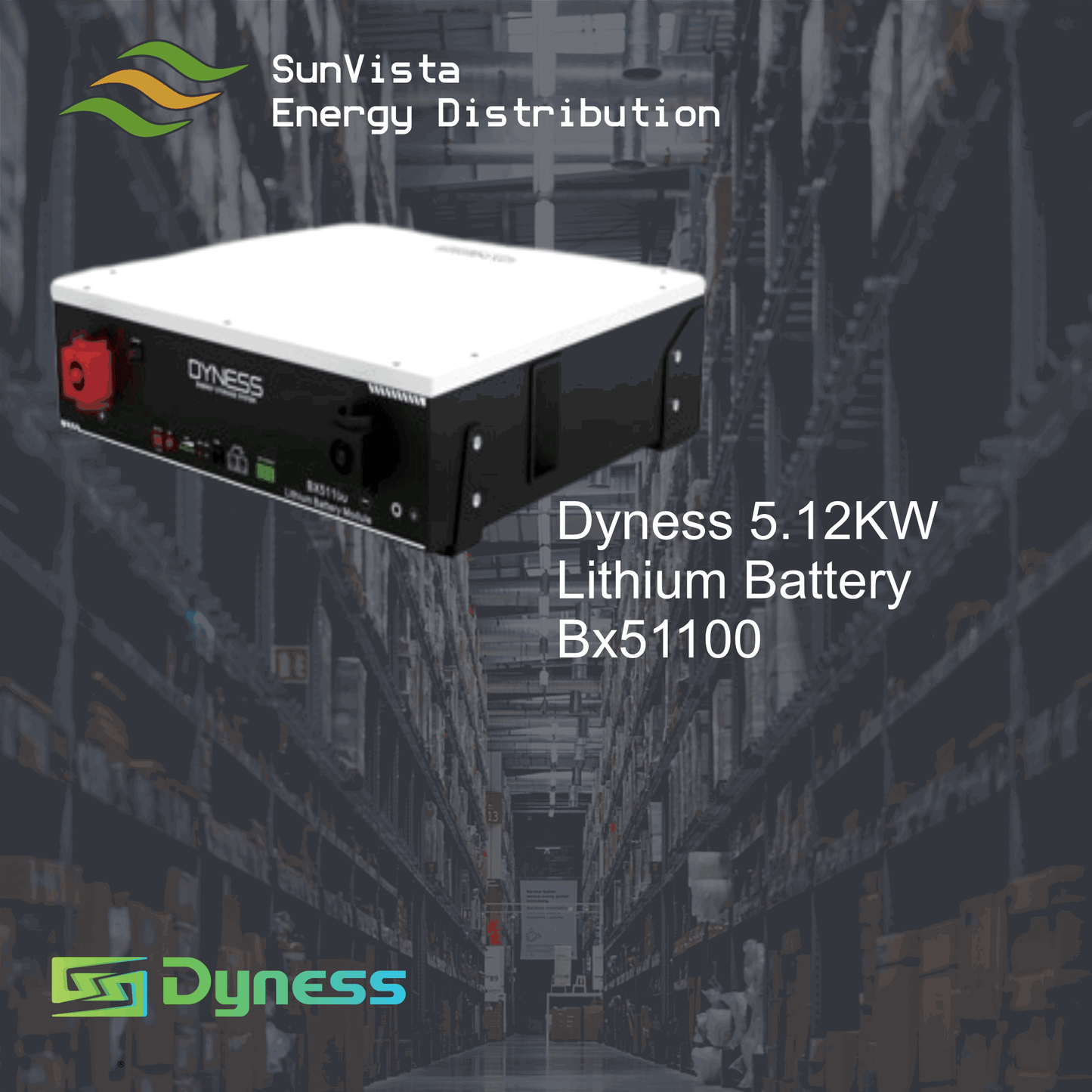

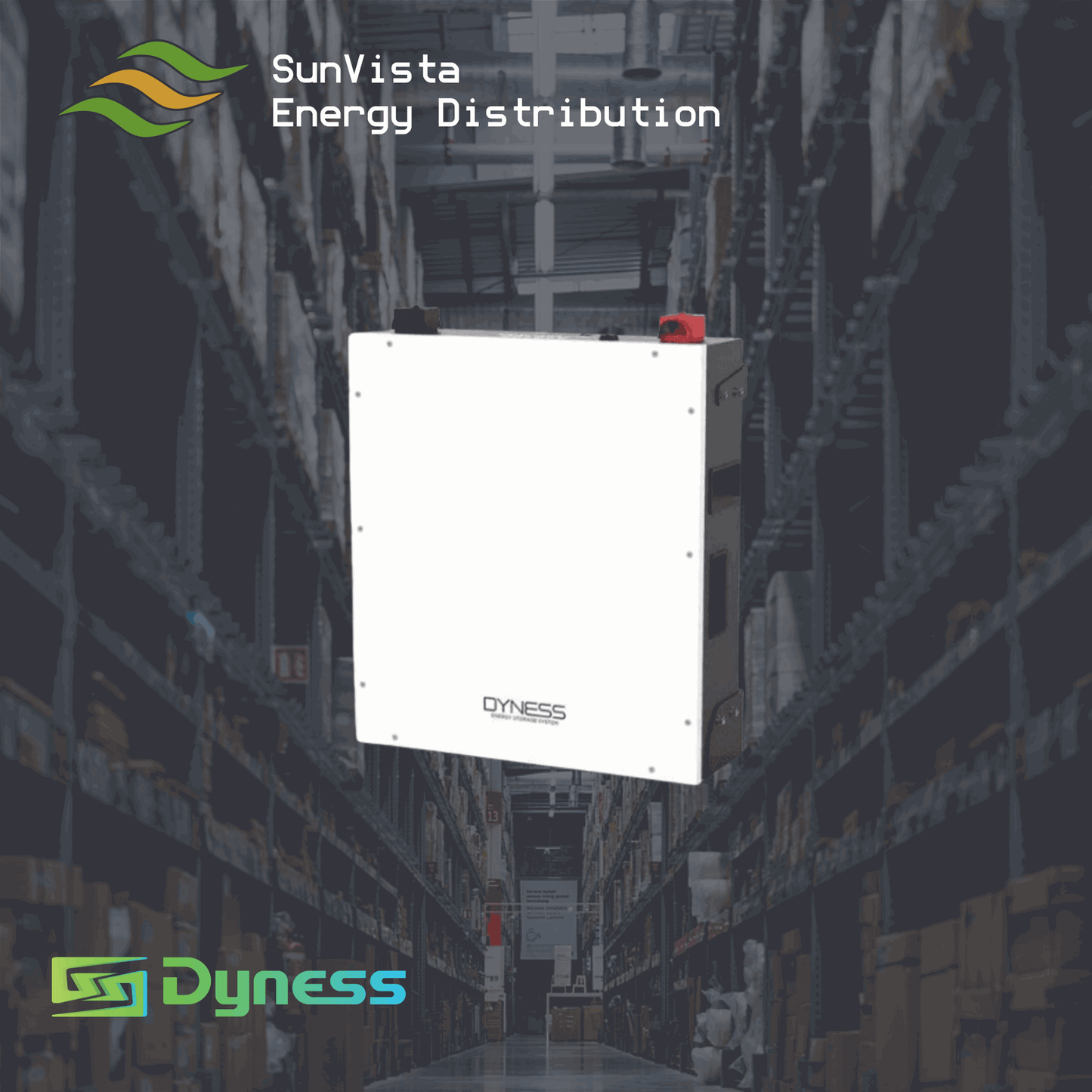

Dyness 5.12KW Lithium Battery BX51100

General Data

• Module Type: LFP
• Battery Module Capacity: 5.12KWH
• Battery Module Voltage: 51.2VDC
• Battery Module Capacity: 100AH
• Battery Cell Capacity: 320Wh
• Battery Cell Voltage: 3.2VDC
• Battery Cell Capacity: 100AH
• Battery Module Charge/Discharge Current: 50A (Recommended)
• Battery Module Charge/Discharge Current: 75A (Max)
• Battery Module Cell Quantity: 16 PCS
• Discharge Condition: -20°C to 55°C
• Charge Condition: 0°C to 55°C
• Storage Condition: -10°C to 35°C
• Battery Module Charge Voltage: 56.5VDC
• Enclosure Protection: IP20
• Battery Module Cell Quantity in Series: 16 PCS
• Parallel Configuration: 40 Modules Maximum
• Communication: CAN/RS485
• Wall Mount and Rack Mount

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SunVista Energy Distribution will not be held liable for any product malfunctions due to incorrectly installed systems.

DYNESS BX51100 Datasheet Download
